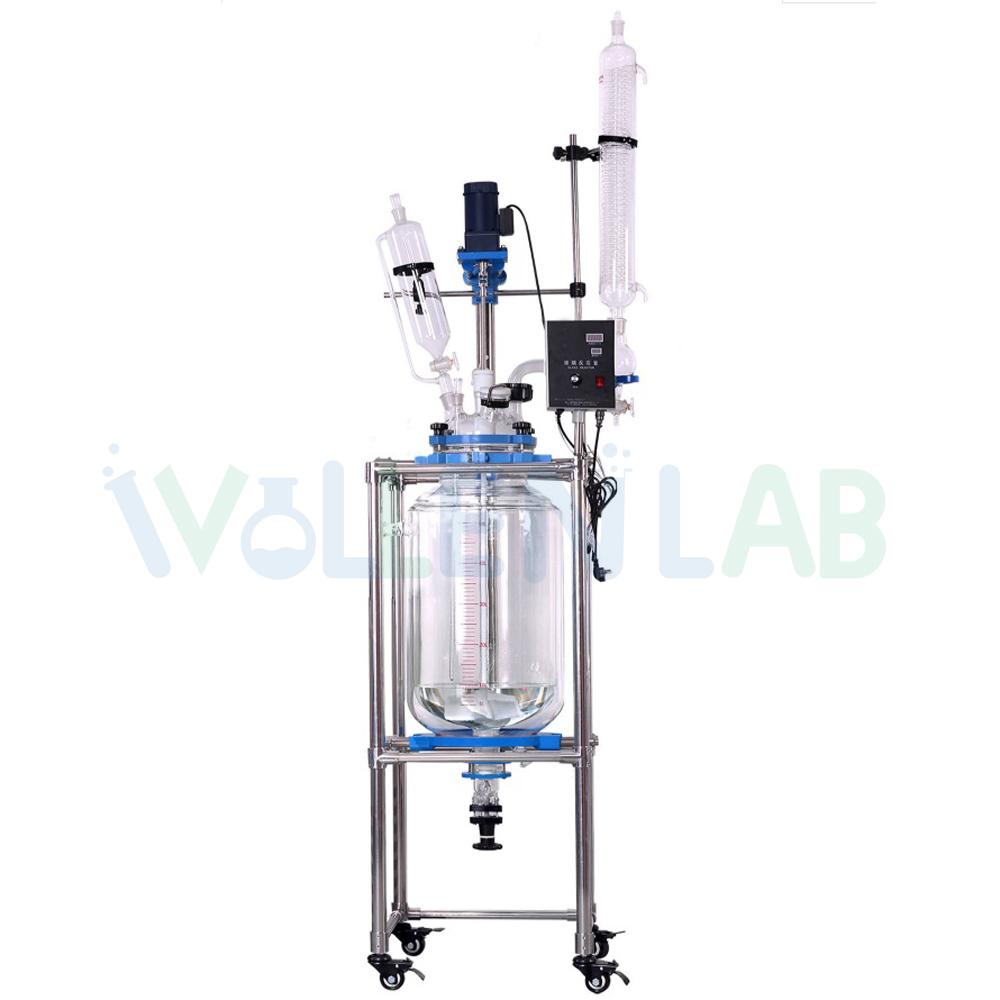

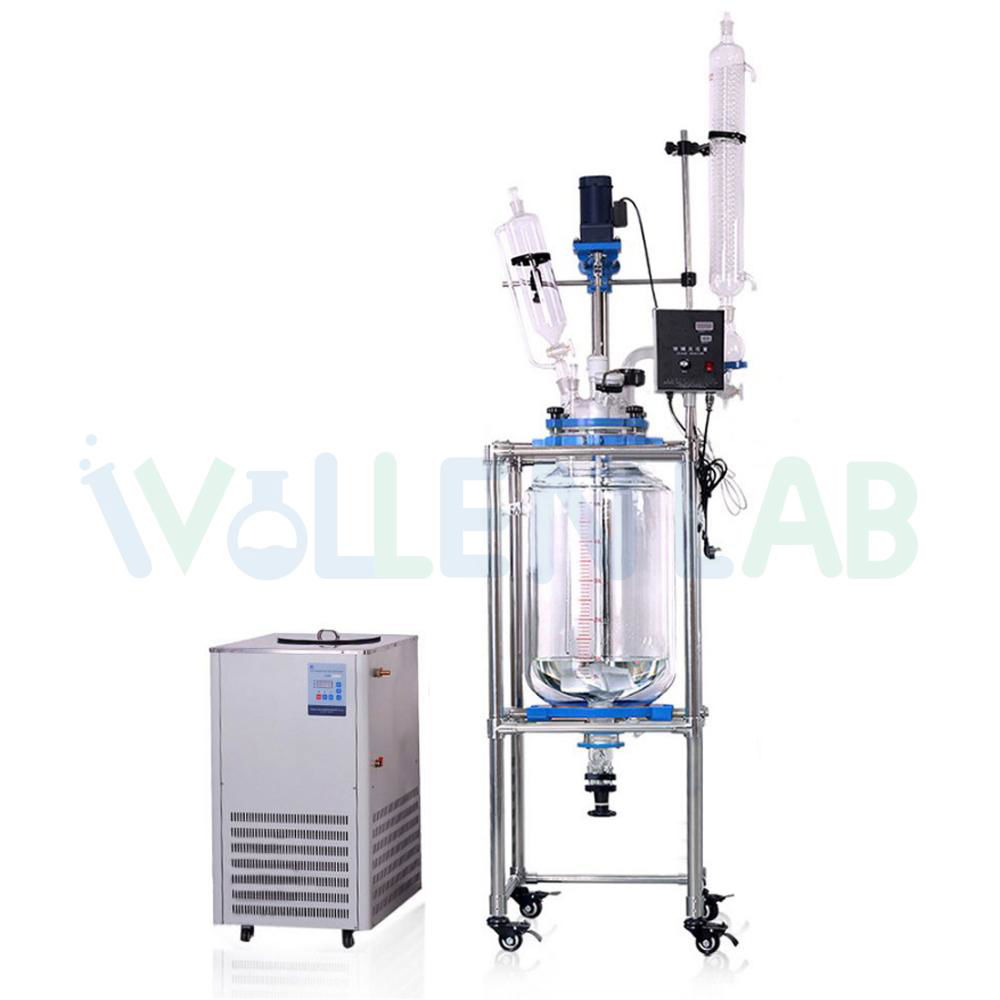

50L Double Jacketed Stirred Rectification Glass Reactor with Reflux Condenser
Lockable Casters for easy moving
Compact structure save space
Proper height of drain valve for easy discharge
|
Model
|
S-50L
|
|
Electrical Requirements
|
1Phase, 220V,50/60Hz
|
|
Glass Parts
|
Glass Vessel Capacity
|
50L
|
|
Cooling/Heating Jacket Capacity
|
16L
|
|
Jacket Cooling/Heating Surface
|
0.65m²
|
|
Condenser Cooling Surface
|
0.429m²
|
|
Capacity of Constant Pressure Funnel
|
2000ml
|
|
Glass Type
|
Food grade borosilicate 3.3
|
|
Temperature Range
|
-80～200℃
|
|
Endurable Temperature Difference
|
△90℃
|
|
Working Pressure
|
-0.1 MPa～Ordinary pressure
|
|
Vessel Head
|
Domed with 6 openings
|
|
6 Openings
|
Opening for Stirring Shaft
|
50# Flange
|
|
Opening for Temperature Sensor
|
35# Flange
|
|
Opening to Connect Condenser
|
50# Standard Ground Joint
|
|
Opening to Feed Liquid Material
|
34# Standard Ground Mouth
|
|
Opening for Constant Pressure Funnel
|
40# Standard Ground Joint
|
|
Opening to Feed Solid Material
|
80# Flange
|
|
Stirring Parts
|
Motor Power
|
140 W
|
|
Controller
|
Digital controller with variable frequency
|
|
Rotation Speed
|
50～500 rpm
|
|
Stirring Shaft
|
PTFE covered stainless steel
|
|
Stirrer
|
4-blade propeller
|
|
Drain Valve
|
1. Flush seal design with large opening and flat flange clamp
2. 320mm Above Floor
|
|
Inlet/Outlet of Jacket
|
DN15 Flange
|
|
Vacuum Sealing
|
PTFE Stirring Guide
|
|
Temperature Sensor
|
PTFE covered stainless steel
|
|
Supporting Frame
|
Stainless Steel 304
|
|
Dimensions(mm)
|
900D×690W×2050H
|
|
Gross Weight
|
150 KG
|
