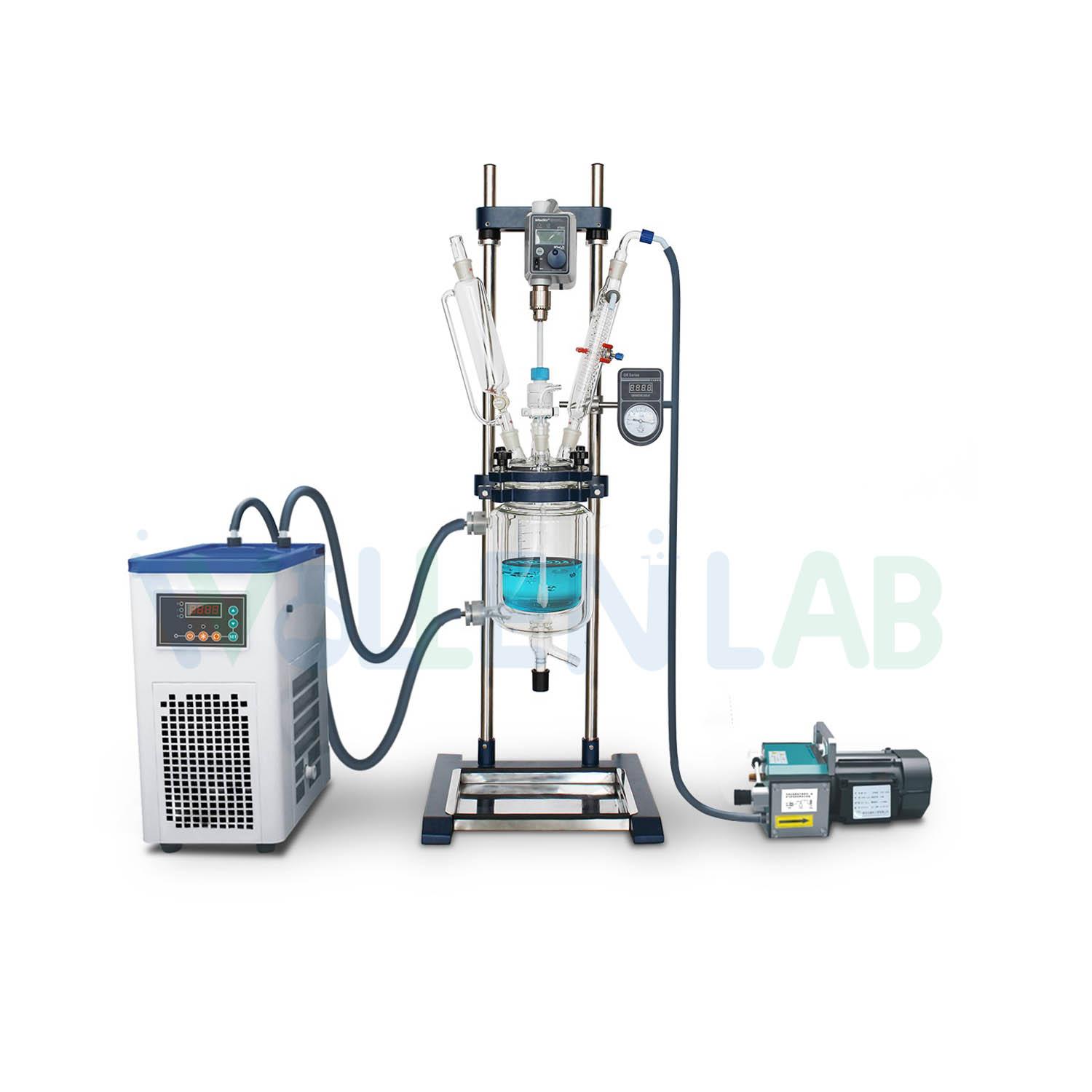

Pilot Plant Chemical Reaction Vessel Jacketed Glass Reactor Tank Supplier
Applications:
Speed-regulation glass reactors are mainly used for synthetic reaction, distillation and concentration of different types of materials. We have single wall, double wall and triple wall glass reactors. The reactor can be pumped to a negative pressure state according to some experimental requirements. A constant pressure funnel or an adjusting valve on the feeding bottle Circulating liquid can be filler into the jacket to heat or cool materials inside. Triple wall glass reactor with two jackets, the inner jacket is for circulating liquid, and the outer layer should be pumped to vacuum condition for thermal insulation.
Advantages:
High borosilicate glass has good physical and chemical properties.
Wide working temperature range: -80℃ to 200℃.
It can work under normal pressure and negative pressure, its vacuum degree can reach to 0.098Mpa.
The vessel can withstand the pressure range from -0.1MPa to 0MPa.
Teflon (PTFE) and FV rubber material cock or discharge valve; Sealing together with PTFE covered O ring.
Specifications:
|
Model
|
GR-5
|
|
Electrical Requirements
|
1Phase，220V/50Hz
|
|
Glass Parts
|
Glass Vessel Capacity
|
5L
|
|
Cooling/Heating Jacket Capacity
|
1.5L
|
|
Jacket Cooling/Heating Surface
|
0.13 m²
|
|
Condenser Cooling Surface
|
0.045 m²
|
|
Glass Type
|
Food grade borosilicate 3.3
|
|
Temperature Range
|
-80～200℃
|
|
Working Pressure
|
-0.1 MPa～Ordinary pressure
|
|
Capacity of Constant Pressure Funnel
|
500ml
|
|
Endurable Temperature Difference
|
90℃
|
|
Vessel Cover
|
Domed with 5 openings
|
|
5 Openings
|
Opening for Stirring Shaft
|
50# Flanges
|
|
Opening for Temperature Sensor
|
24# standard Ground Mouth
|
|
Opening to Connect Condenser
|
35# standard Ball Mill Joint
|
|
Opening to Feed Liquid Material
|
24# standard Ground Mouth
|
|
Opening for Constant Pressure Funnel
|
29# standard Ground Joint
|
|
Stirring Parts
|
Motor Power
|
90 W
|
|
Controller
|
Digital controller with variable frequency
|
|
Rotation Speed
|
50～500 rpm
|
|
Stirring Shaft
|
PTFE covered stainless steel
|
|

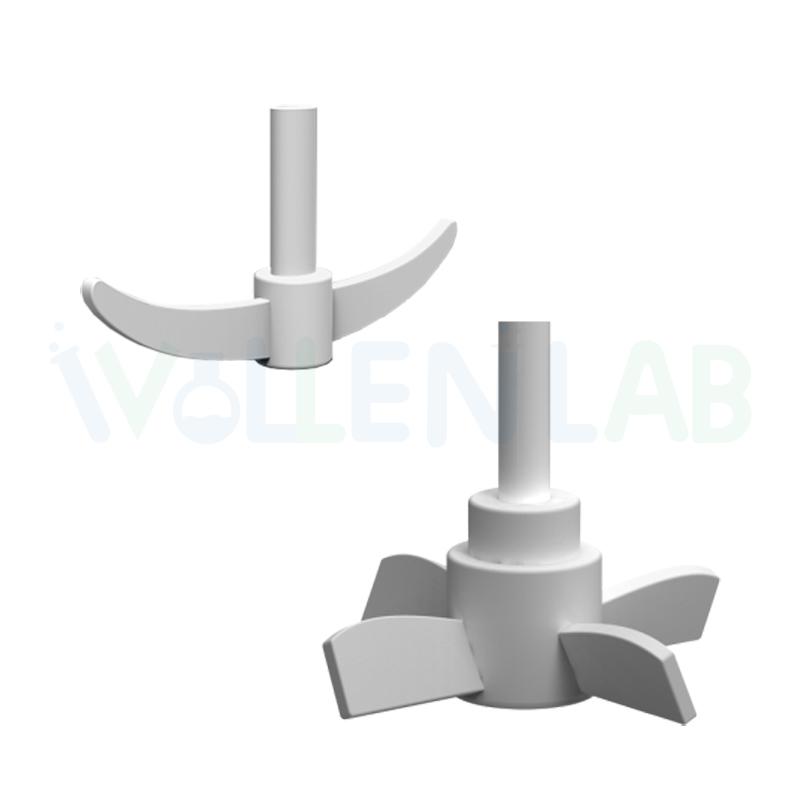

Stirrer
|
4-blade propeller
|
|
Vacuum Sealing
|
Patented sealing kit
|
|
Safety
|
Over-heat, Over-load protection
|
|
Drain Valve
|
1. Without dead volume 2. 400mm Above Floor (adjustable)
|
|
Inlet/Outlet of Jacket
|
DN 15 Flange Connection
|
|
Vacuum Sealing
|
PTFE
|
|
Temperature Sensor
|
PTFE reinforced stainless steel, Chemical Resistant
|
|
Supporting Frame
|
Stainless Steel 304
|
|
Dimensions(mm)
|
510W×520D×1594H
|
|
Net Weight
|
50 KG
|
