Laboratory Small Volume Desktop Chemical Experiment Rotary Evaporator Price with Water Bath
Applications:
It is suitable for experiment of evaporation, distillation, extraction or separation of chemicals under the condition of vacuum, and collecting after condensing. So it usually works with water circulating vacuum pump and circulating cooling chiller as a whole system to meet the production and experimental requirements.
Advantages:
1. Easy operation; Safe Using
2. Automatic lifting 130mm~150mm
3. Vertical double coil condenser; Smaller area occupied; Condensation area reaches 0.2m2
4. Digital display of rotation speed; 5~180rpm
5. Vacuum sealing; Big evaporation capacity
6. Aluminum alloy body for easy movement
7. 5.5L water/oil bath for 1~3L rotary flask
Technical Specification:
Name of Commodity
|
Rotary Evaporator
|
Model
|
RE-1603
|
Performance
|
Rotation Speed
|
5~180rpm
|
Evaporation Capacity
|
Water: 1.5L/H; Ethyl alcohol: 4L/H
|
Vacuum Degree
|
Below 399.9Pa (3mmHg)
|
Temperature Range
|
Water Bath: RT~99℃; Oil Bath: RT~200℃
|
Temperature Stability
|
±1℃
|
Function
|
Temperature Control
|
Microcomputer PID control
|
Temperature Setting/Display
|
Keypad input, Digital display
|

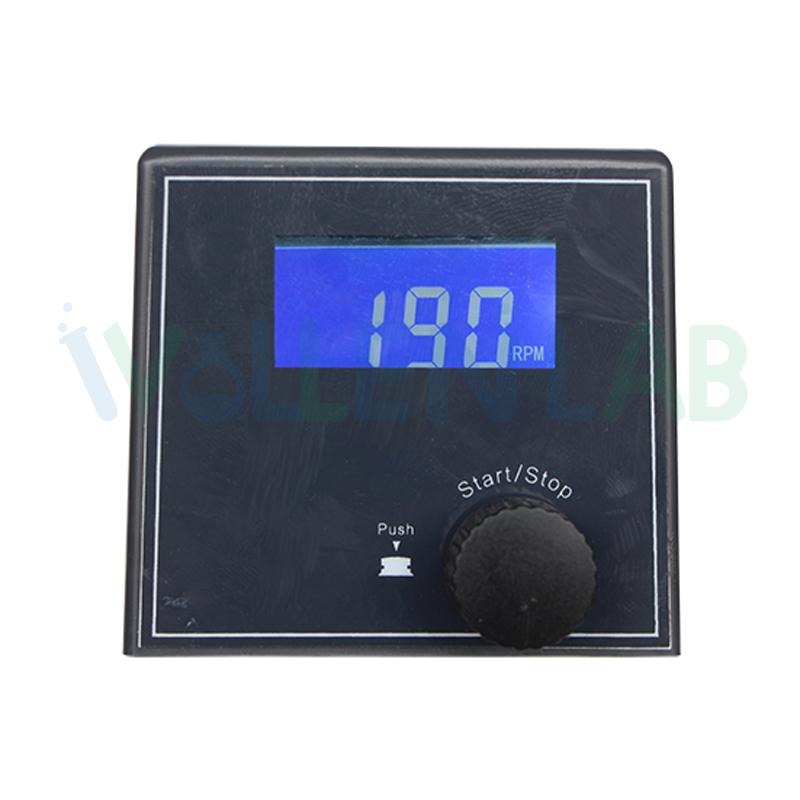

Rotary Speed Setting/Display
|
Knob setting, Digital display
|
Safety Functions
|
Fuse; Overload protection circuit of motor; Lifting range limit switch
|
Lifting Function
|
Automatic lifting
|
Composition
|
Rotary Motor
|
DC motor
|
Lifting Motor
|
DC motor
|
Heating Power
|
1.3Kw
|
Condenser
|
Vertical double coil
|
Condensation Area
|
0.20m2
|
Rotary Shaft Port
|
TS29# (24# connector optional)
|
Distillation Flask
|
3L Spherical bottle, TS29/38
|
Collection Flask
|
1L, ball mill port S35
|
Vacuum Sealing
|
Teflon+Viton double sealing rings
|
Specification
|
Glass Connection Port
|
10mm
|
Bedplate
|
T type
|
Lifting Range
|
130mm~150mm
|
Ambient temperature
|
5~35℃
|
Overall Dimensions (mm)
|
640Wx400Dx730H
|
Weight
|
18Kg
|
Electric Current
|
2A
|
Power supply
|
AC220V/50Hz
|
Water/Oil Bath Dimension
|
260mm diameter; 140mm depth
|
Material of Bath
|
304 stainless steel
|
